<SchemaViewer />

A Schema Viewer component for EventCatalog that supports JSON schemas and Avro schemas.

Renders the given schema (.json, .yaml, .avro, .avsc) into the page.

tip

The <SchemaViewer/> component only works with JSON Schema and Avro schemas.

If you need to render other schema formats, please use the <Schema/> component.

Avro support was added in 2.64.0. Please upgrade to the latest version of EventCatalog to use this component.

Support​

The <SchemaViewer/> component is supported in domains, services, and all messages, changelogs, and custom documentation pages.

Usage​

  1. Add a JSON or Avro schema file to your folder.
    • e.g /events/MyEvent/schema.json
    • e.g /events/MyEvent/schema.avro
  2. Include the <SchemaViewer/> component inside the markdown
    • e.g /events/MyEvent/index.mdx

Example

---
#event frontmatter
---

The Inventory Adjusted event is triggered whenever there is a change in the inventory levels of a product.
This could occur due to various reasons such as receiving new stock, sales, returns, or manual adjustments by the inventory management team.

<!-- Renders the schema with search and expand options -->
<SchemaViewer file="schema.json" title="JSON Schema" maxHeight="500" search="true" expand="true" />

<!-- Renders the Avro schema -->
<SchemaViewer file="schema.avro" title="Avro Schema" maxHeight="500" />

<!-- Also supports YAML formats -->
<SchemaViewer file="schema.yaml" title="YAML Schema" maxHeight="500" />

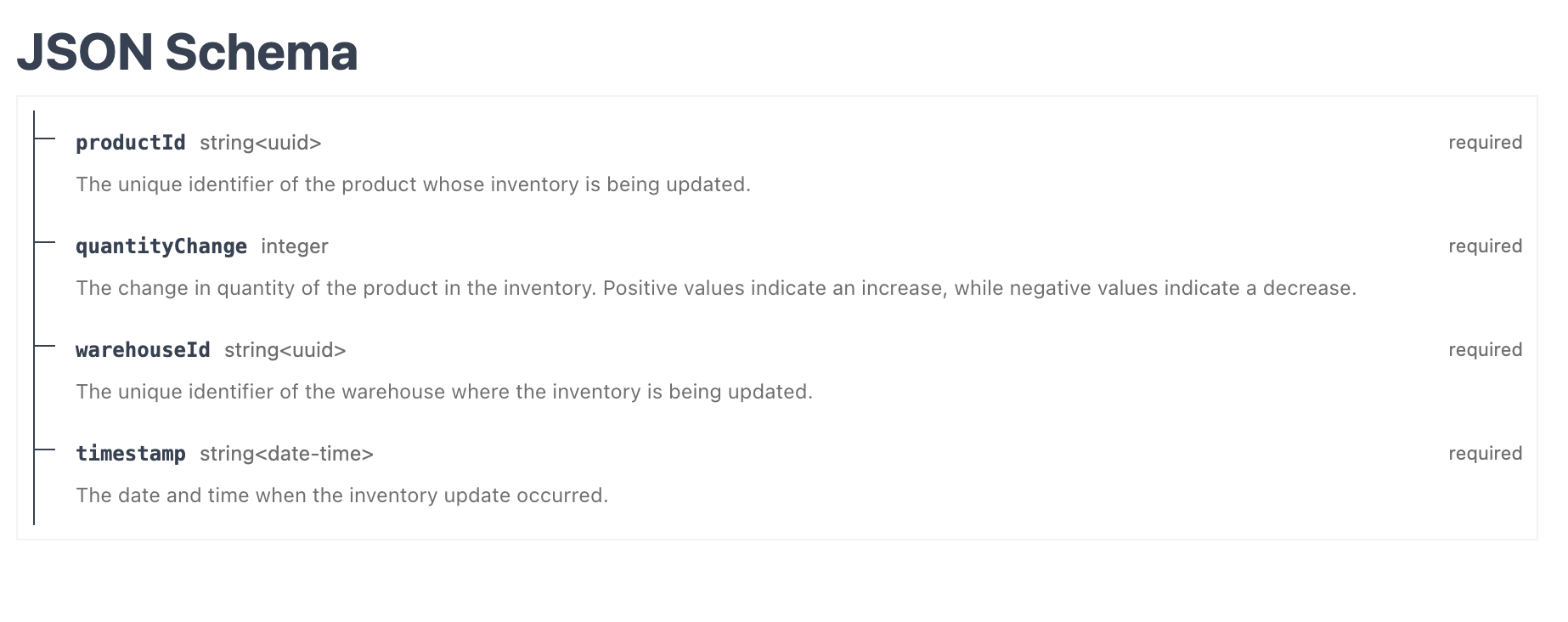

Output example in EventCatalog​

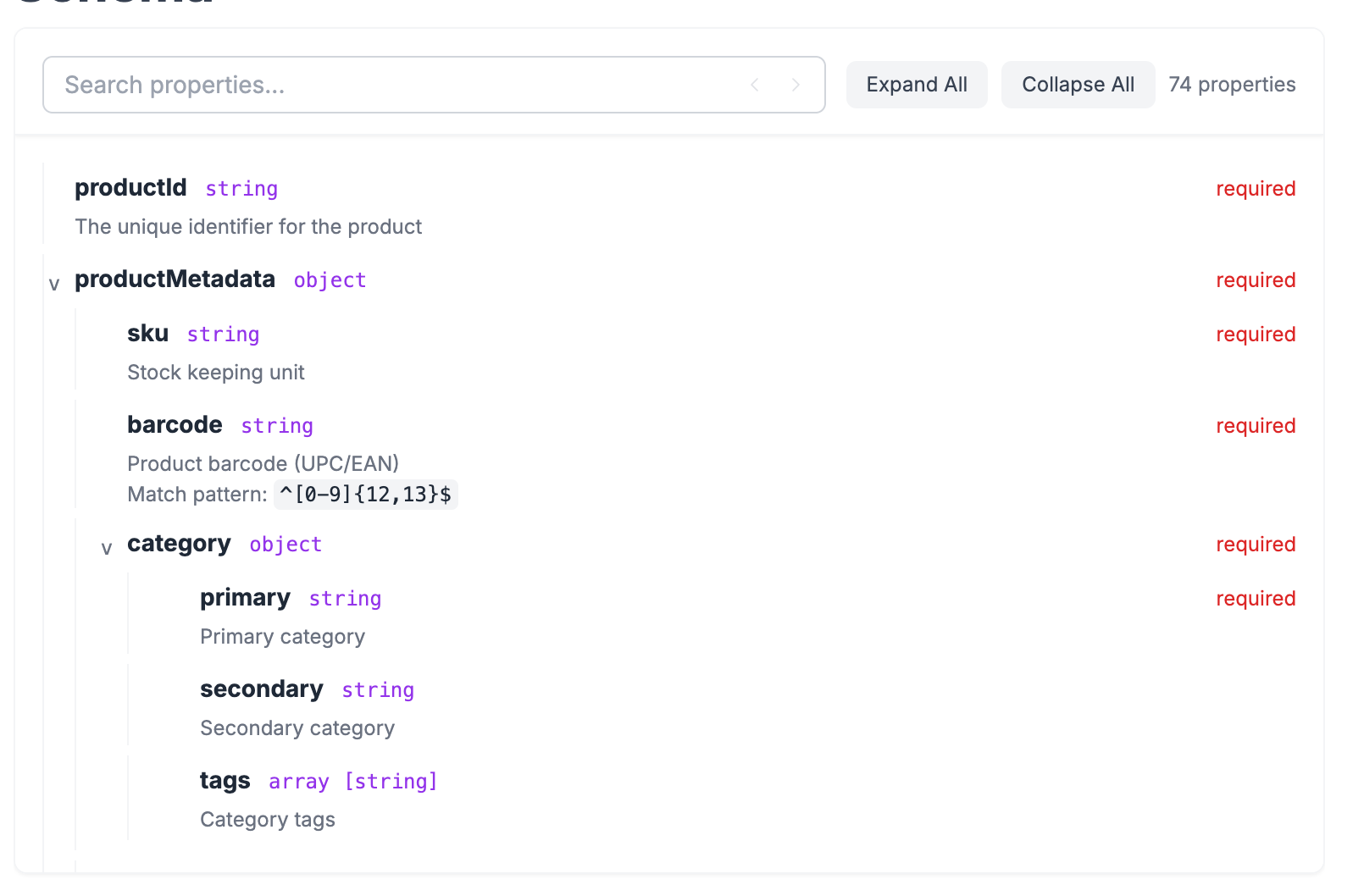

Example output

Props​

NameTypeDefaultDescription
title (optional)string(empty)Title to render above your schema
file (required)string(empty)The file to load into the schema block. Path is resolved by EventCatalog.
maxHeight (optional)string"500"Max height of the JSON Schema viewer (in pixels).
search (optional)booleanfalseRenders a search input in the viewer
expand (optional)booleanfalseExpands all properties by default
showRequired (optional)booleanfalseAvro Schemas only: Will show which fields are required. Fields are required if they don't have a default value or null as their type. As documented in the Avro Specification

Rendering multiple schemas​

You can use the SchemaViewer multiple times in your page.

Example

---
#event frontmatter
---

The Inventory Adjusted event is triggered whenever there is a change in the inventory levels of a product.
This could occur due to various reasons such as receiving new stock, sales, returns, or manual adjustments by the inventory management team.

<SchemaViewer file="schema.json" title="JSON Schema" maxHeight="500" id="json-schema" />
<SchemaViewer file="old-schema.json" title="Another Version" maxHeight="500" id="json-schema2" />
<SchemaViewer file="new-schema.yml" title="Another Version" maxHeight="500" id="yaml-schema" />
