Map commands to events

View as Markdown
Added in eventcatalog@4.2.0

Commands often produce one of several events. For example, a CreateOrder command may produce OrderCreated when it succeeds or OrderRejected when it fails.

EventCatalog lets you document these relationships so teams can see which events to expect from a command and which commands can produce a specific event.

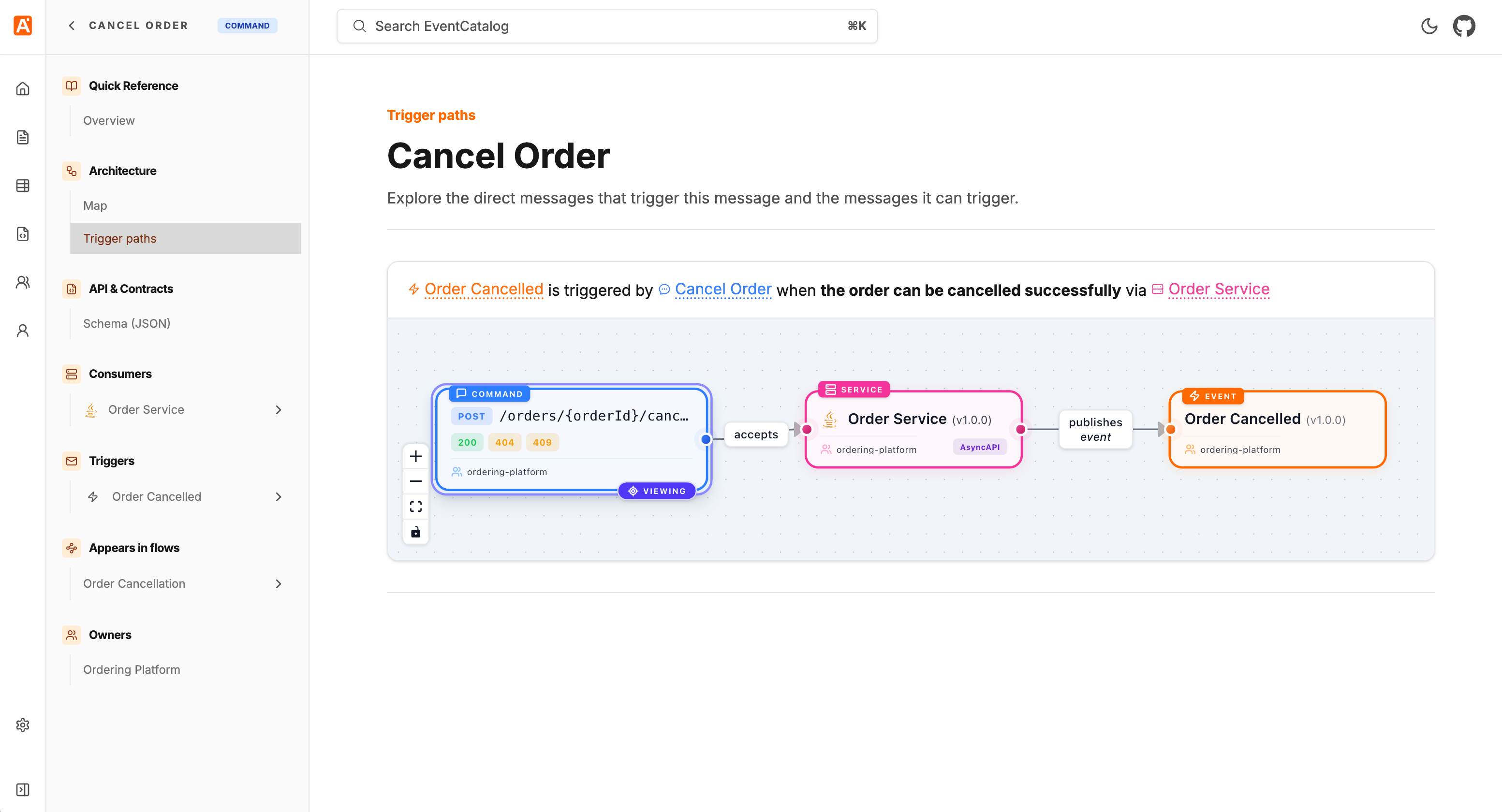

Cancel Order command mapped to the Order Cancelled event through the Order Service

Connect a command to events​

Commands are received from particular resources in EventCatalog (e.g services). When you receive a command, you can also specify what events are triggered downstream, you do this by using the triggers property.

In the example below, the OrderService receives the CreateOrder (command) and we also specify that htis command is linked to and triggers the OrderCreated and OrderRejected event.

/services/OrderService/index.mdx
---
id: OrderService
version: 1.0.0
name: Order service
receives:
  # receives the CreateOrder Command
  - id: CreateOrder
    version: 1.0.0
    # Tell EventCatalog that the CreateOrderCommand
    # in this context will trigger the OrderCreated and Rejeected events.
    triggers:
      - id: OrderCreated
        version: 1.0.0
      - id: OrderRejected
        version: 1.0.0
---

The command and every event it triggers must already exist in your catalog before EventCatalog can resolve the relationship.

Describe different scenarios​

Add an optional condition to explain the scenario in which an event is produced. Conditions are useful for success and failure outcomes, business-rule branches, or different paths that produce the same event.

/services/OrderService/index.mdx
---
id: OrderService
version: 1.0.0
name: Order service
receives:
  - id: CreateOrder
    version: 1.0.0
    triggers:
      - id: OrderCreated
        version: 1.0.0
        # specify the scenario when this event would be triggered
        condition: When payment is authorized and stock is available
---

This lets you document common command-handling scenarios such as:

  • A command producing a success event or a failure event.
  • A command producing different events based on a business rule.
  • Multiple paths producing the same event for different reasons.
  • Different services producing different events from the same command.
PropertyTypeRequiredDescription
idstringYesId of the event produced by the command.
versionstringNoVersion or semver range of the event. Defaults to latest.
conditionstringNoScenario in which the command produces the event.

The version on the received command also defaults to latest when omitted.

Explore command and event relationships​

The command page lists its events under Triggers. Each event page lists the commands that can produce it under Triggered by. Message maps also show the command, the resource handling it, and the resulting events.

The example below shows the Cancel Order command mapped to the Order Cancelled event through the Order Service, including the scenario in which the event is produced.

Cancel Order command mapped to the Order Cancelled event through the Order Service

Select Map commands to events under Architecture to compare these relationships. EventCatalog draws each command-to-event path through the receiving service or domain and groups repeated paths into selectable scenarios.

The Map commands to events link is only generated for messages that participate in at least one resolved relationship.
