Creating entities

Added in eventcatalog@2.36.0

Entities are markdown files in EventCatalog, they have unique ids and can be versioned.

Entities can be assigned to domains and/or services.

Show me the code!

Want to skip the example and code? You can see an example of an entity in the EventCatalog demo and how it works on GitHub here

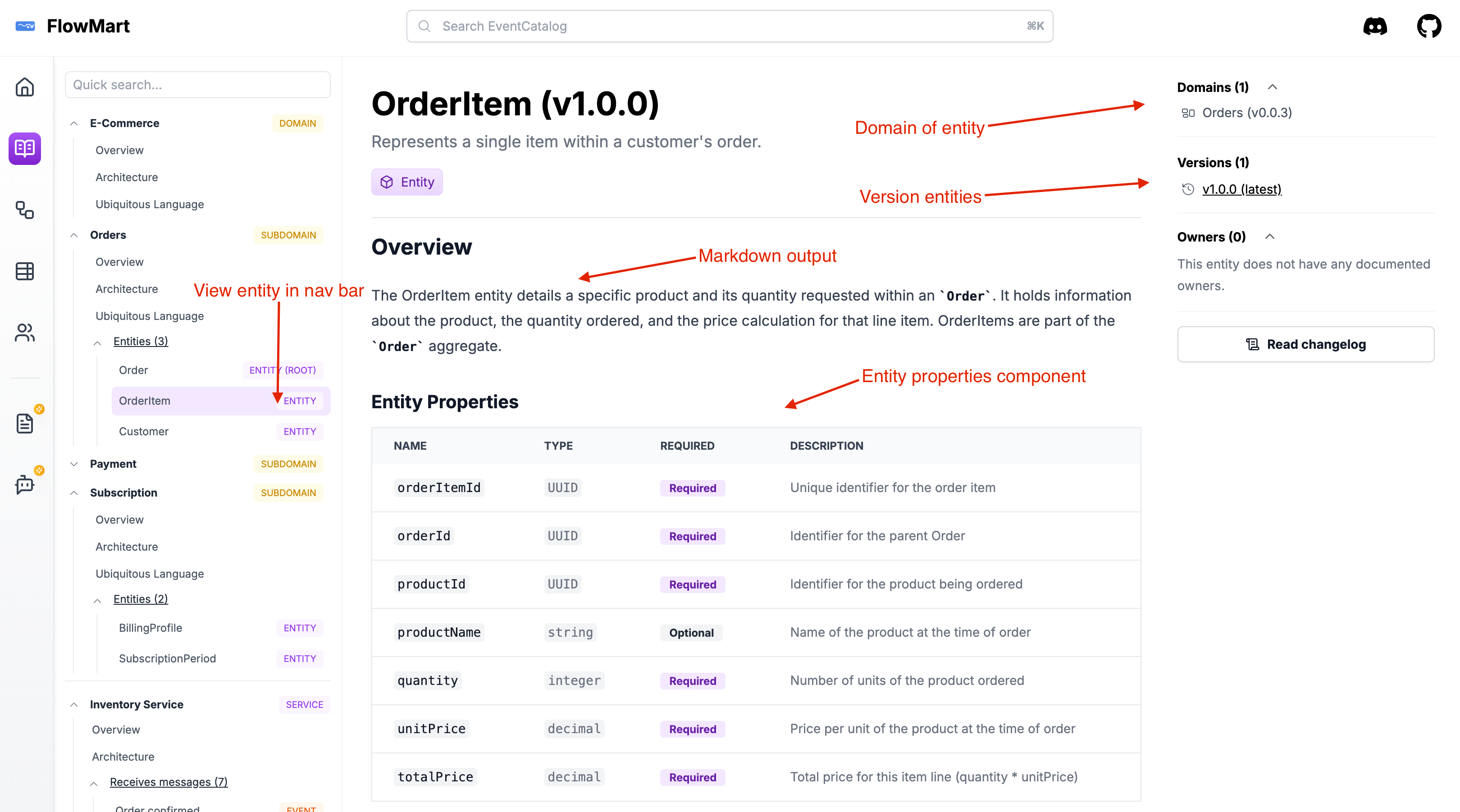

What do entities look like in EventCatalog?

View Demo of an OrderItem entity for an Orders domain →

Adding a new entity

To add a new entity create a new folder within the /domains or /services folder with an index.mdx file.

Creating an entity in a domain:

• /domains/{Domain Name}/entities/{Entity Name}/index.mdx
  • (example /domains/Orders/entities/Order/index.mdx)

Creating an entity in a service:

• /services/{Service Name}/entities/{Entity Name}/index.mdx
  • (example /services/PaymentService/entities/Payment/index.mdx)

The index.mdx contents are split into two sections, frontmatter and the markdown content.

Here is an example of what a entity markdown file may look like.

/domains/Orders/entities/Order/index.mdx (example)

---
# the id of the entity (used in EventCatalog)
id: Order
# the name of the entity
name: Order
# the version of the entity
version: 1.0.0
# whether the entity is an aggregate root (optional)
aggregateRoot: true
# a summary of the entity (optional)
summary: Represents a customer's request to purchase products or services.
# the properties of the entity (optional)
properties:
  - name: orderId
    type: UUID
    required: true
    description: Unique identifier for the order
  - name: customerId
    type: UUID
    required: true
    description: Identifier for the customer placing the order
  - name: orderDate
    type: DateTime
    required: true
    description: Date and time when the order was placed
  - name: status
    type: string
    required: true
    description: Current status of the order (e.g., Pending, Processing, Shipped, Delivered, Cancelled)
    enum: ['Pending', 'Processing', 'Shipped', 'Delivered', 'Cancelled']
  - name: orderItems
    type: array
    items:
      type: OrderItem # Assuming an OrderItem entity exists
    required: true
    description: List of items included in the order
  - name: totalAmount
    type: decimal
    required: true
    description: Total monetary value of the order
  - name: shippingAddress
    type: Address # Assuming an Address value object or entity exists
    required: true
    description: Address where the order should be shipped
---

## Overview

The Order entity captures all details related to a customer's purchase request. It serves as the central aggregate root within the Orders domain, coordinating information about the customer, products ordered, payment, and shipping.

### Entity Properties
<EntityPropertiesTable />

## Relationships

*   **Customer:** Each order belongs to one `Customer` (identified by `customerId`).
*   **OrderItem:** An order contains one or more `OrderItem` entities detailing the specific products and quantities.
*   **Payment:** An order is typically associated with a `Payment` entity (not detailed here).
*   **Shipment:** An order may lead to one or more `Shipment` entities (not detailed here).

## Examples

*   **Order #12345:** A customer orders 2 units of Product A and 1 unit of Product B, to be shipped to their home address. Status is 'Processing'.
*   **Order #67890:** A customer places a large order for multiple items, requiring special shipping arrangements. Status is 'Pending' until payment confirmation.

Once you add you new entity, you need to add it to the domain.

/domains/Orders/index.mdx

---
# the id of the domain (used in EventCatalog)
id: Orders
# the name of the domain
name: Orders
# Add your entities here
entities:
  - id: Order
    # Optional, if not provided the latest version will be used
    version: 1.0.0
---

This is your domain markdown....

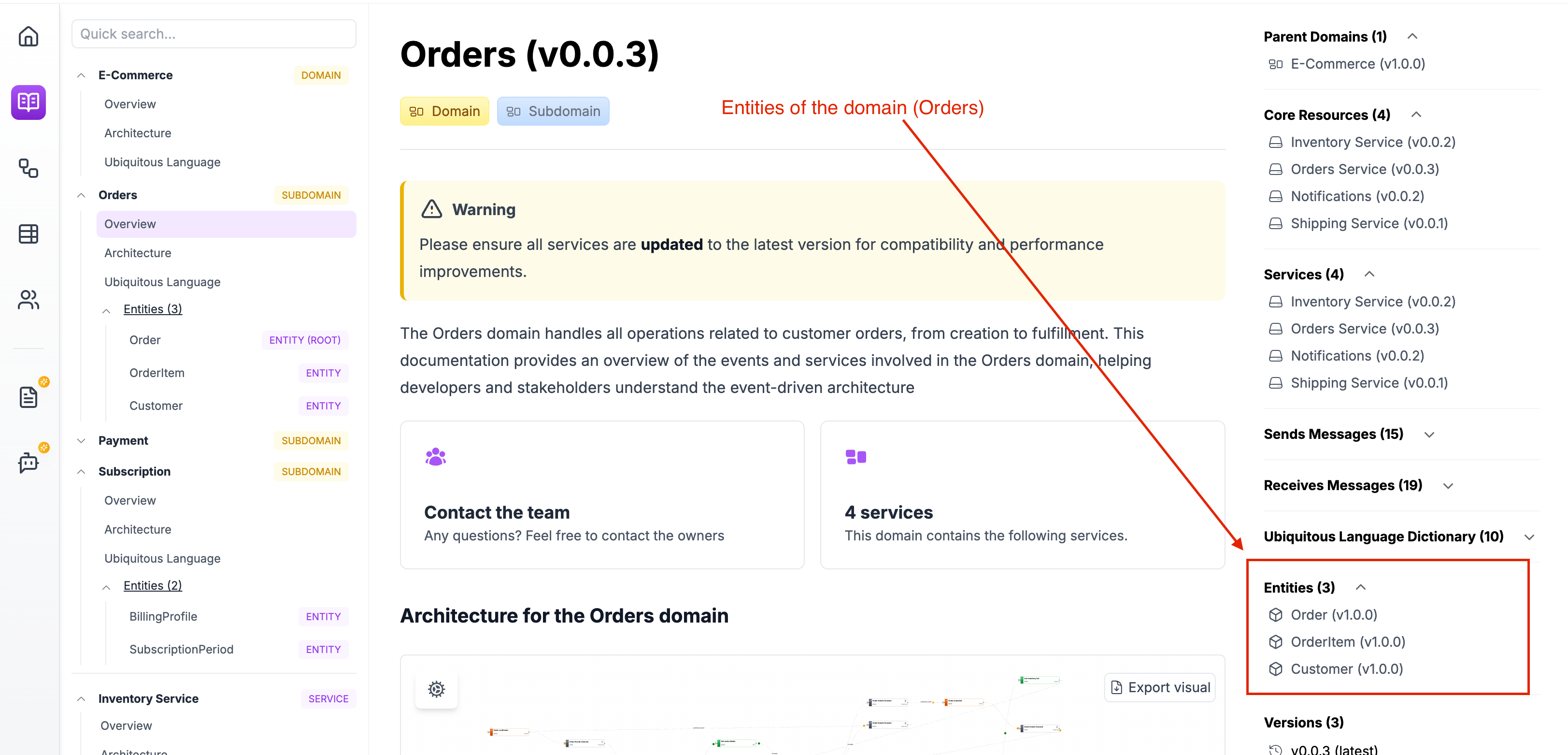

That's it!

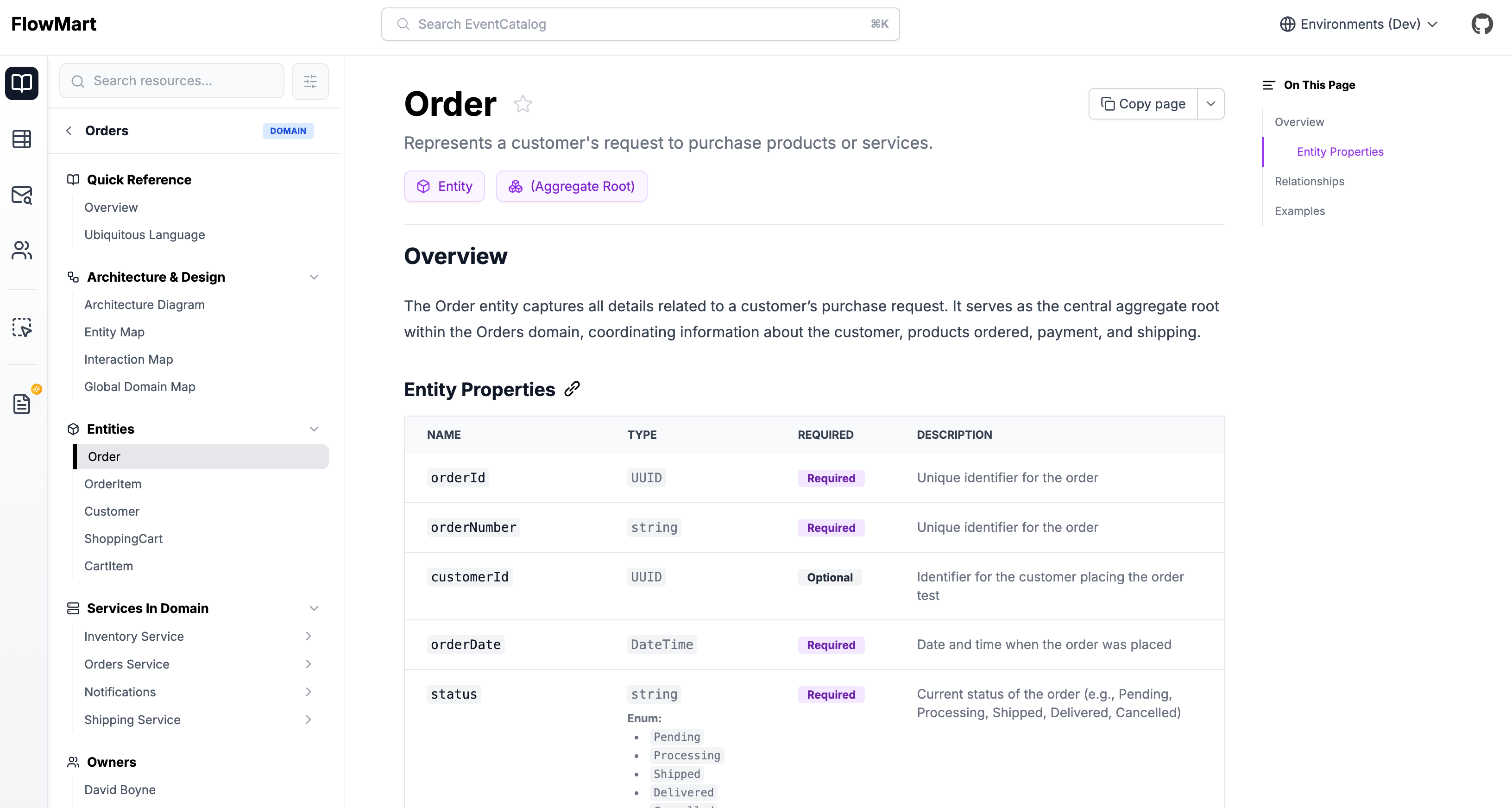

Create your entity, add it to the domain and you're done. You can then view your entity in your EventCatalog.

View example of the Orders Domain →

Adding content

With entities you can write any Markdown you want and it will render on your page. Every entity gets its own page.

tip

Think about writing a blog. EventCatalog is just markdown. Write and use it how you like, and the website will render your content!

Within your markdown content you can use components to add interactive components to your page.

To find out more read the entity components list.

Tips for entity content

It's entirely up to you what you want to add to your entities markdown content but here are a few things you might want to consider.

• Add a summary of the entity
• Add a diagram of the entity
• Add examples of the entity
• Add a table of the entity properties using the <EntityPropertiesTable /> component
