Visualizer Configuration

Added in eventcatalog@2.42.0

By default EventCatalog will render multiple nodes for your channels in the visualizer. This is to give you a better understanding of the relationship between your messages and channels.

If you prefer to only see a single node for your channels you can change the rendering mode in the visualizer settings.

Visualizer configuration​

The visualizer configuration is set in the eventcatalog.config.js file.

module.exports = {
  visualiser: {
    channels: {
      // The render mode for channels in the visualiser
      // supports `flat` or `single`
      renderMode: 'single'
    }
  }
}

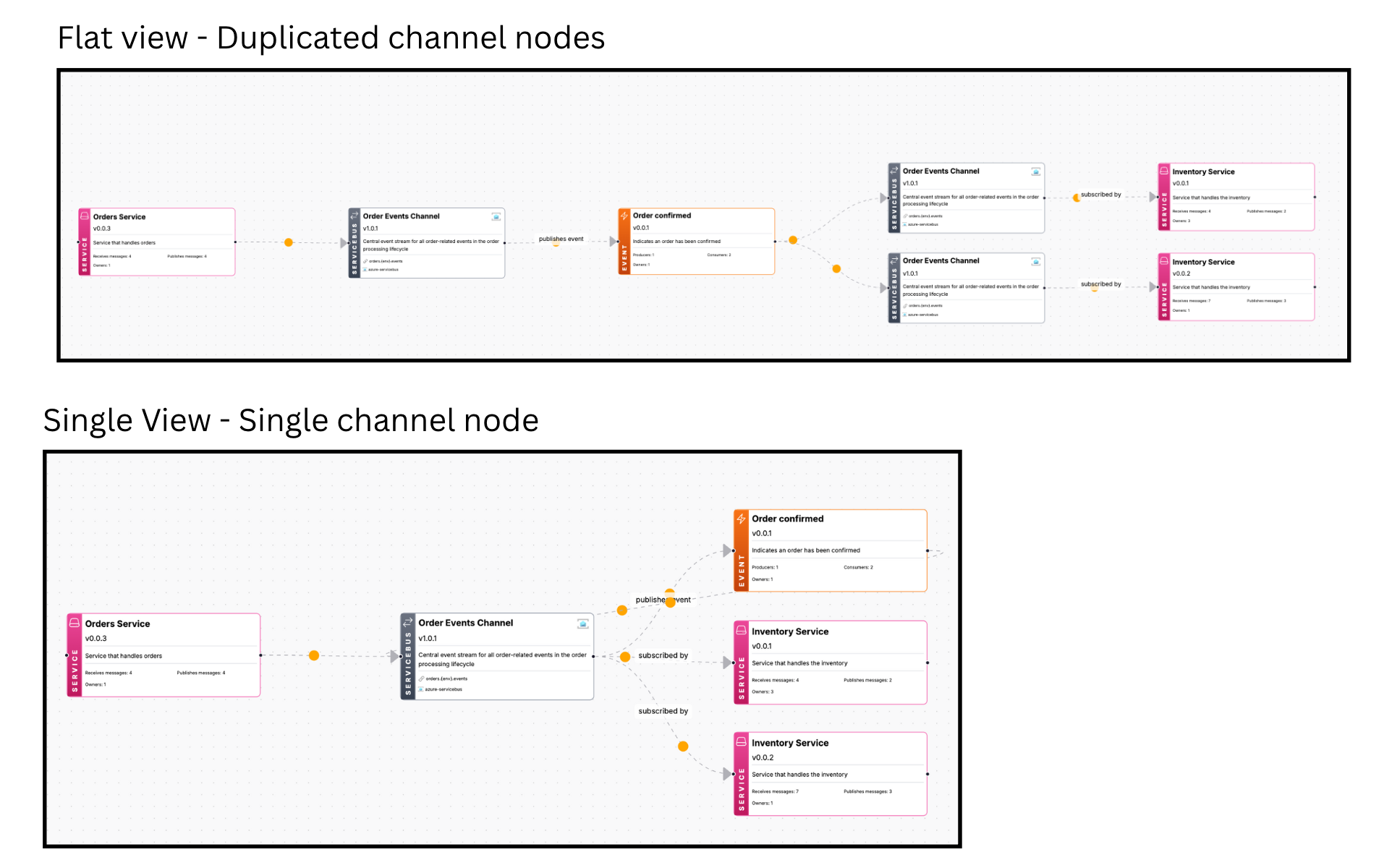

flat and single view examples​

Flat Example
