Using IcePanel

Added in eventcatalog@3.2.1

EventCatalog supports embedding IcePanel diagrams in all your markdown files.

IcePanel is a collaborative diagramming tool designed for visualizing software architecture using the C4 model. It helps teams create interactive system context, container, and component diagrams that can be shared and explored.

Using IcePanel in EventCatalog

To embed an IcePanel diagram, use the <IcePanel /> component in any markdown file.

Getting your IcePanel share URL

1. Open your diagram in IcePanel
2. Click the Share button
3. Copy the share/embed URL (it should look like https://s.icepanel.io/...)

Basic Example

---
# your frontmatter
---

<IcePanel url="https://s.icepanel.io/OpQVdslrqhZkyb/0QfB" />

Example with title and description

---
# your frontmatter
---

<IcePanel
  url="https://s.icepanel.io/OpQVdslrqhZkyb/0QfB"
  title="System Architecture"
  description="Overview of our microservices architecture showing how services communicate."
  height="800"
/>

Full screen mode

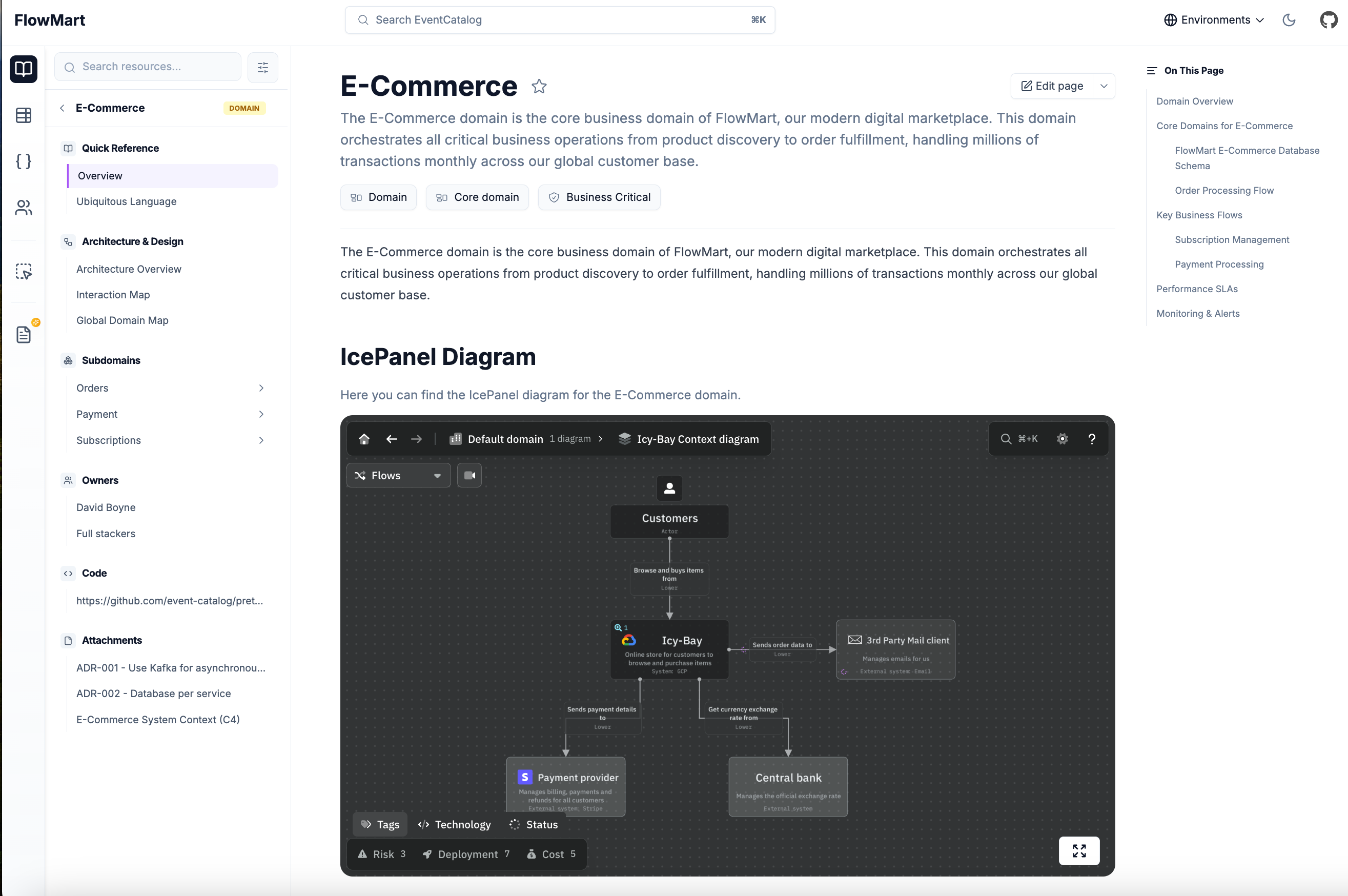

Each embedded IcePanel diagram includes a full screen button, allowing your teams to explore the diagram in detail without leaving EventCatalog.

Props

Name	Type	Default	Required	Description
url	string		Yes	The share URL of the IcePanel diagram. To get the URL, click "Share" in IcePanel and copy the embed/share URL.
title	string		No	The title to display above the diagram.
description	string		No	A description to display below the title.
height	string	600	No	The height of the embedded diagram in pixels.
width	string	100%	No	The width of the embedded diagram.

More resources

• IcePanel documentation - Learn more about IcePanel and how to use it
• C4 model - Learn about the C4 model for visualizing software architecture
• IcePanel component reference - Full component documentation
